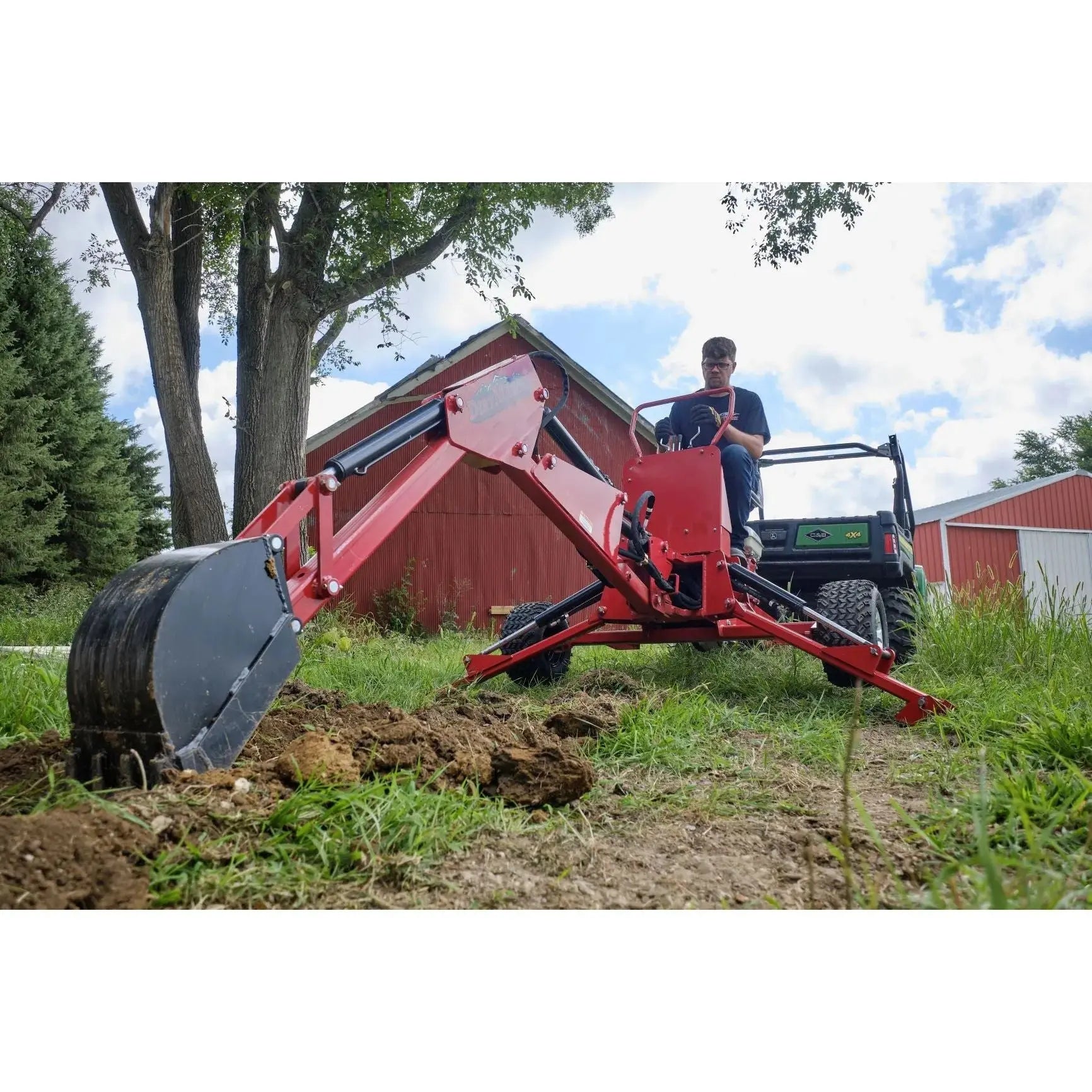

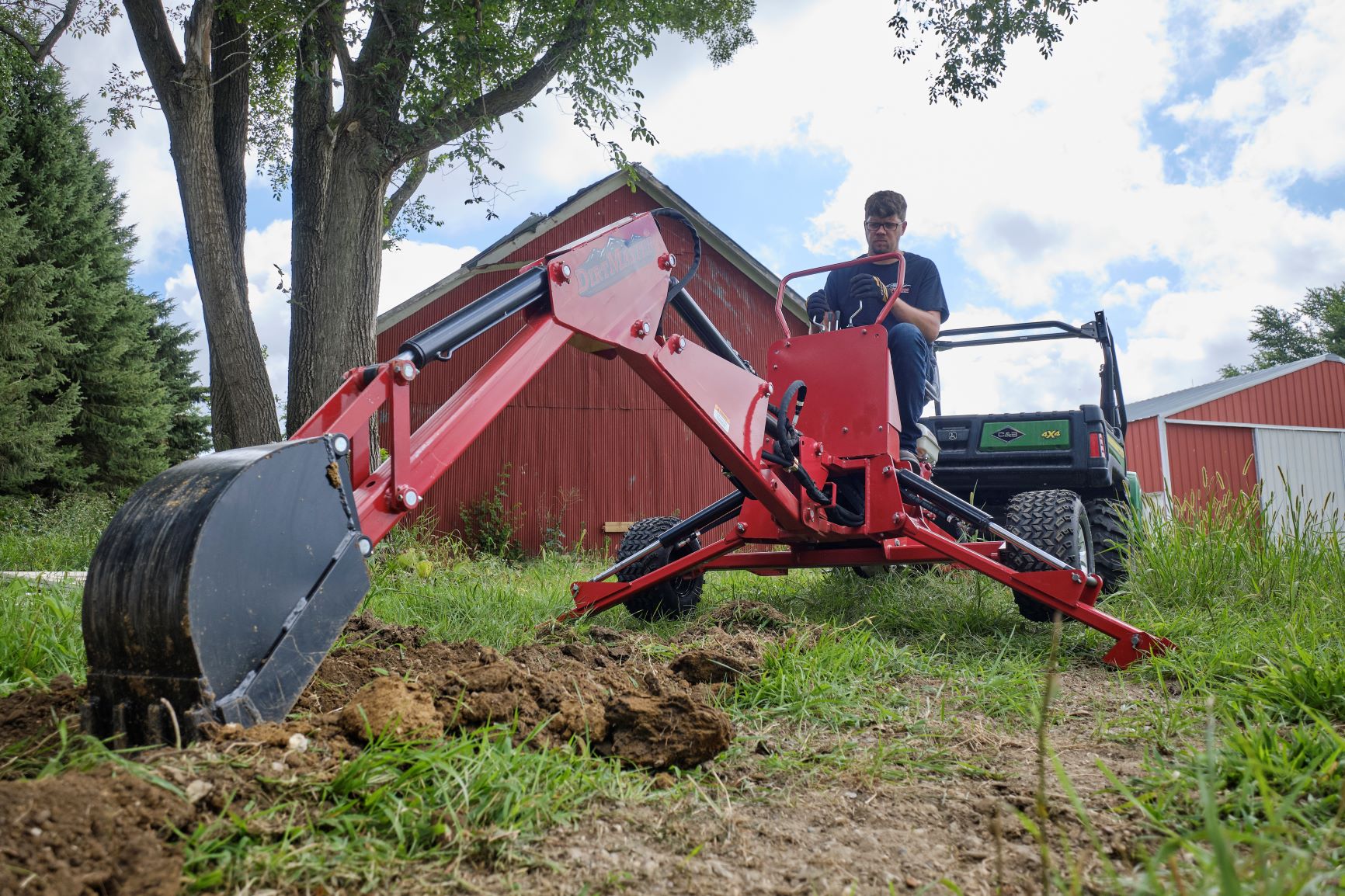

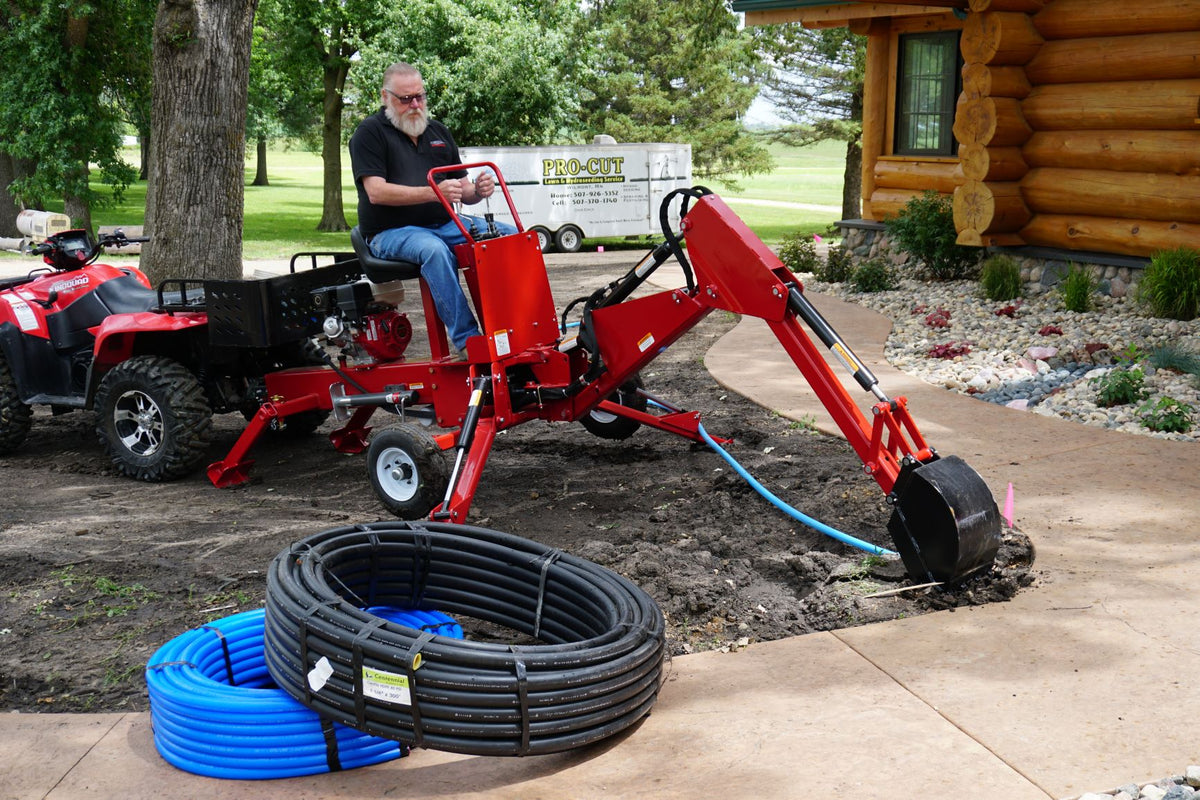

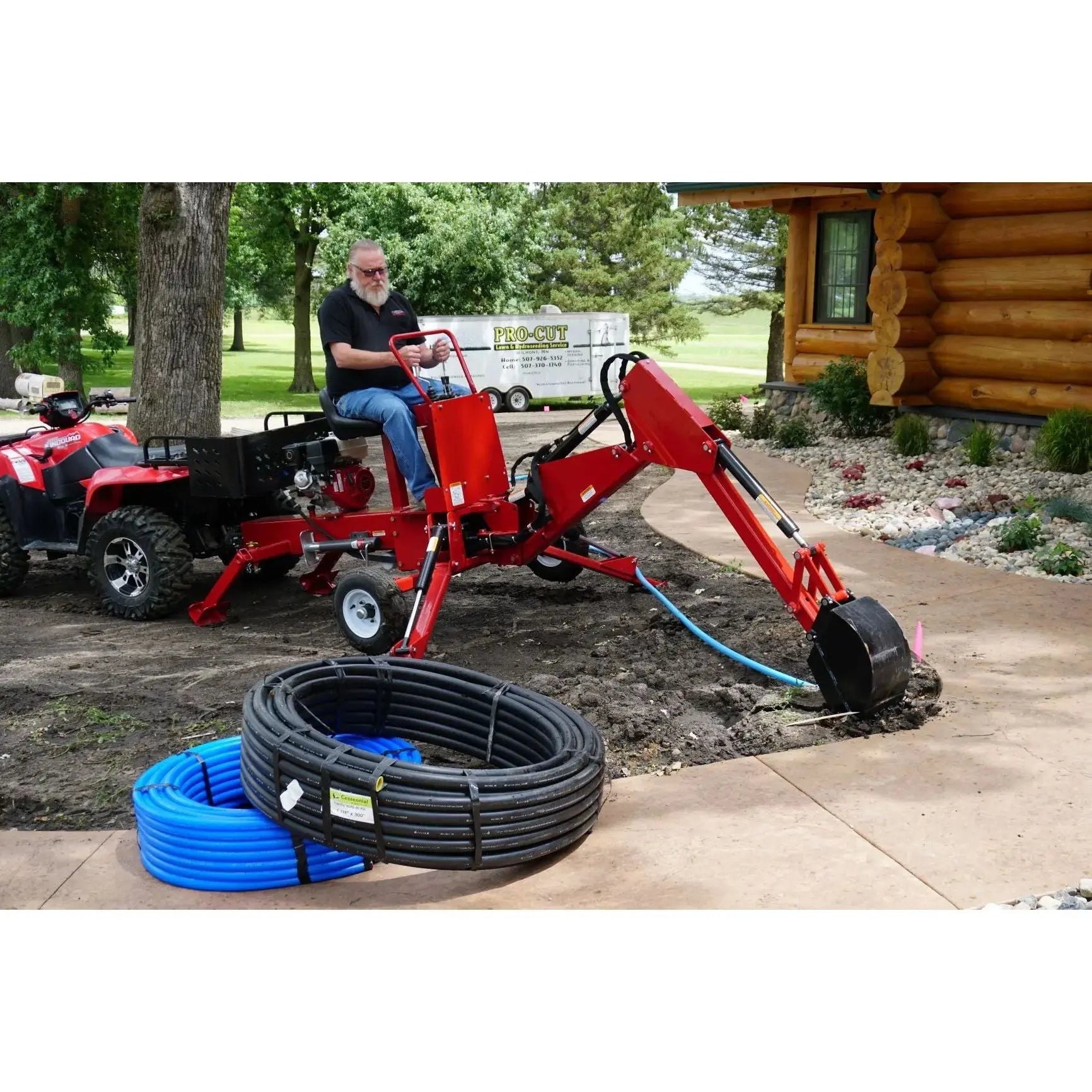

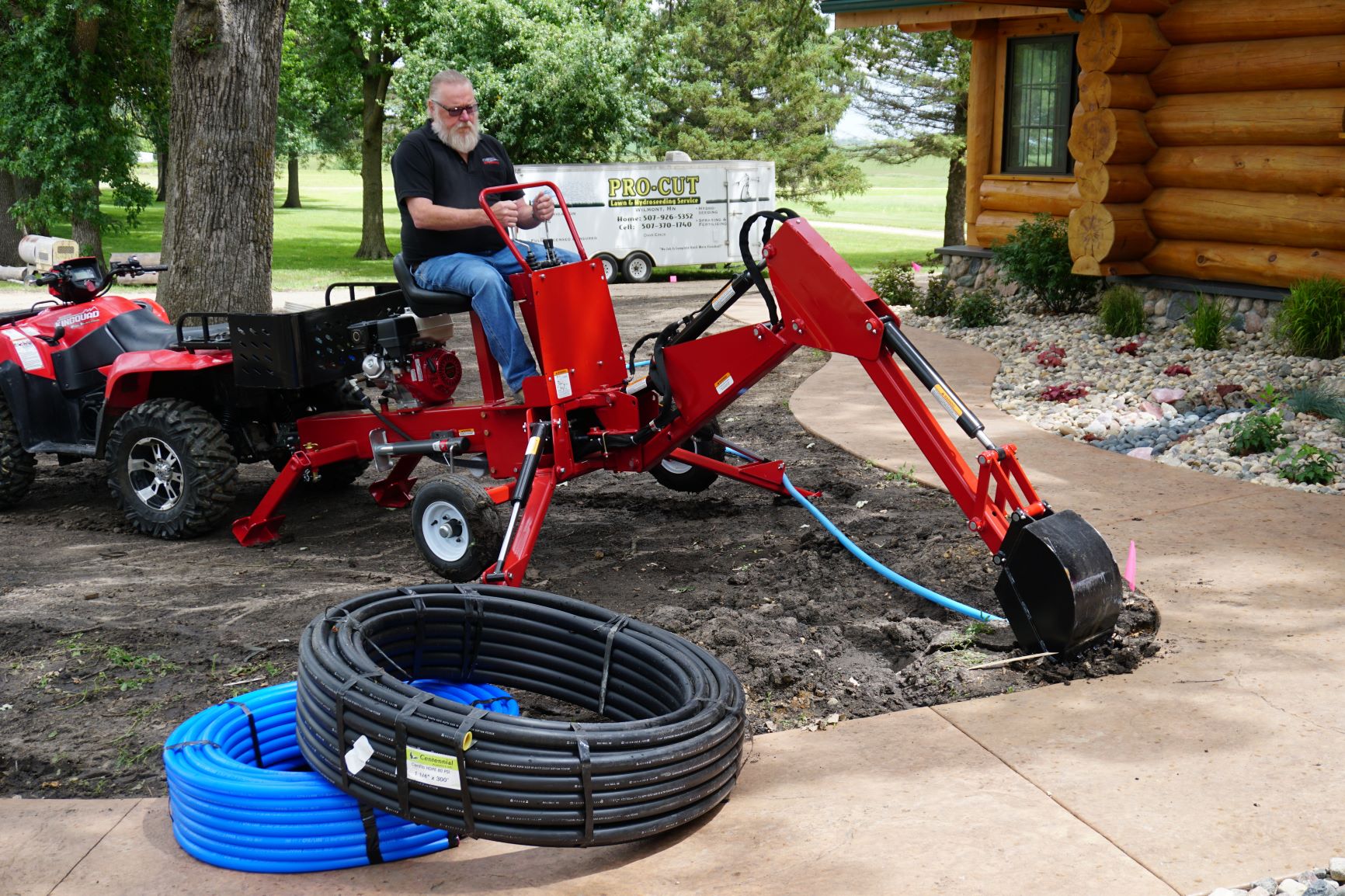

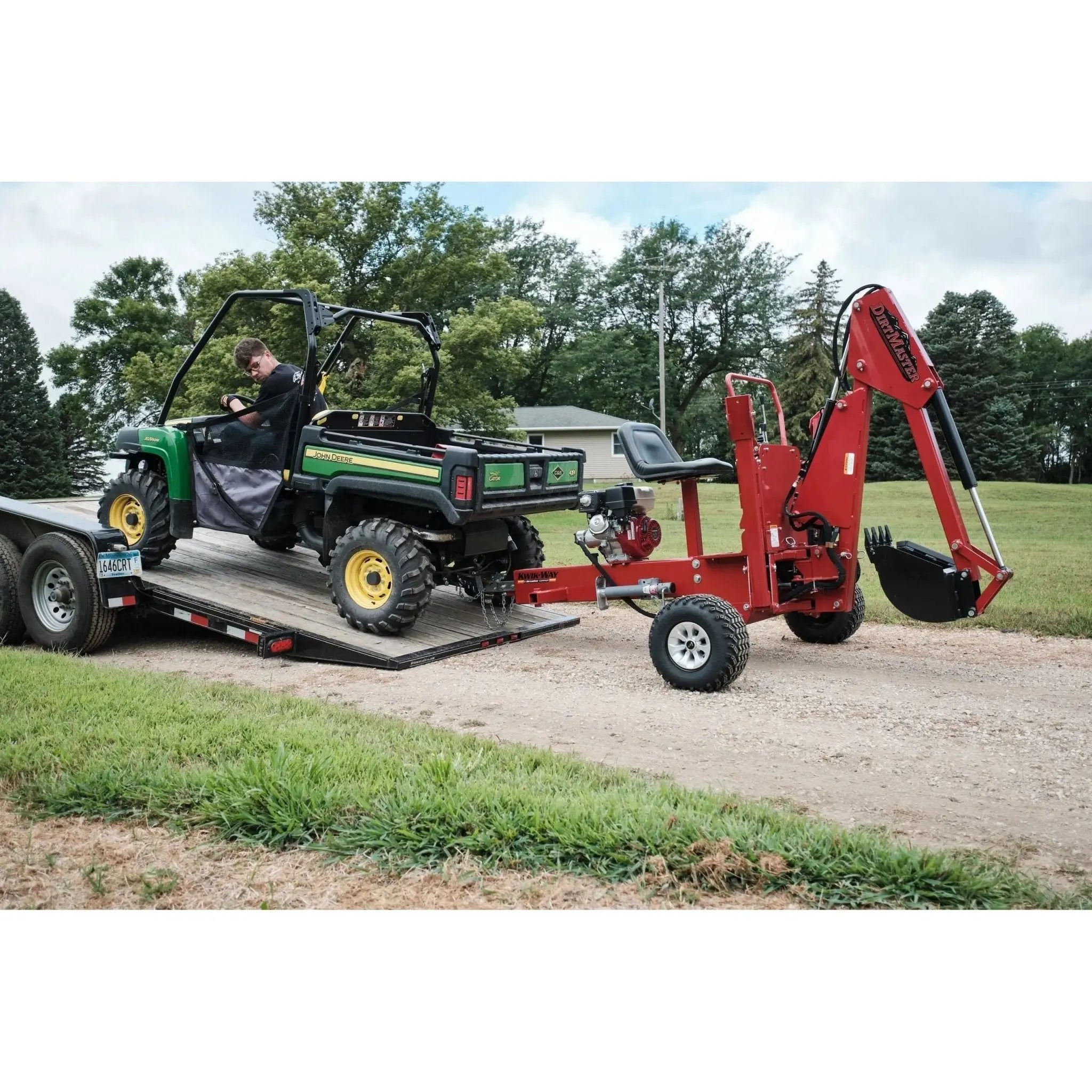

DirtMaster - Self Contained Towable Backhoe KW55-32710

INCLUDES 12" BUCKET, Main HYDRAULIC STABILIZERS

Engine: Manual start with low oil indicator and shutdown. Max HP: 8.4HP / 3600 rpm Torque: 14.1 ft. lbs. / 2500 rpm Fuel Capacity: 1.6 Gallons Oil Capacity: 1.16 qt 10W30 Tire Size: 4.80/4.00 Pneumatic Digging Depth: 78” Horizontal Reach: 100” Ripping Force: 2600 lbs. Max Digging Radius: 140° Lubrication: 25 Grease fittings at pivot points Bucket Rotation: 147° Tow Ball Size: 2” Ball Towing Speed: 45 mph max* (10 mph with ATV/UTV) Hydraulic Stabilizer Width: Down 100”, Up (transport) 45” Dry Weight: 1,175 lbs Operation Weight: 1,260 lbs Collapsed/Storage Dimensions: L 120” x W 64” x H 70”

Hydraulic Specifications Hydraulic Tank: 12.5 gallon capacity Hydraulic System: 13.93 gallon capacity (including tank, cylinders, hoses, filter) Hydraulic Fluid Filter: 10 micron filter Gear Pump: Single stage Hydraulic Fluid: Universal Hydraulic Fluid (all temps)

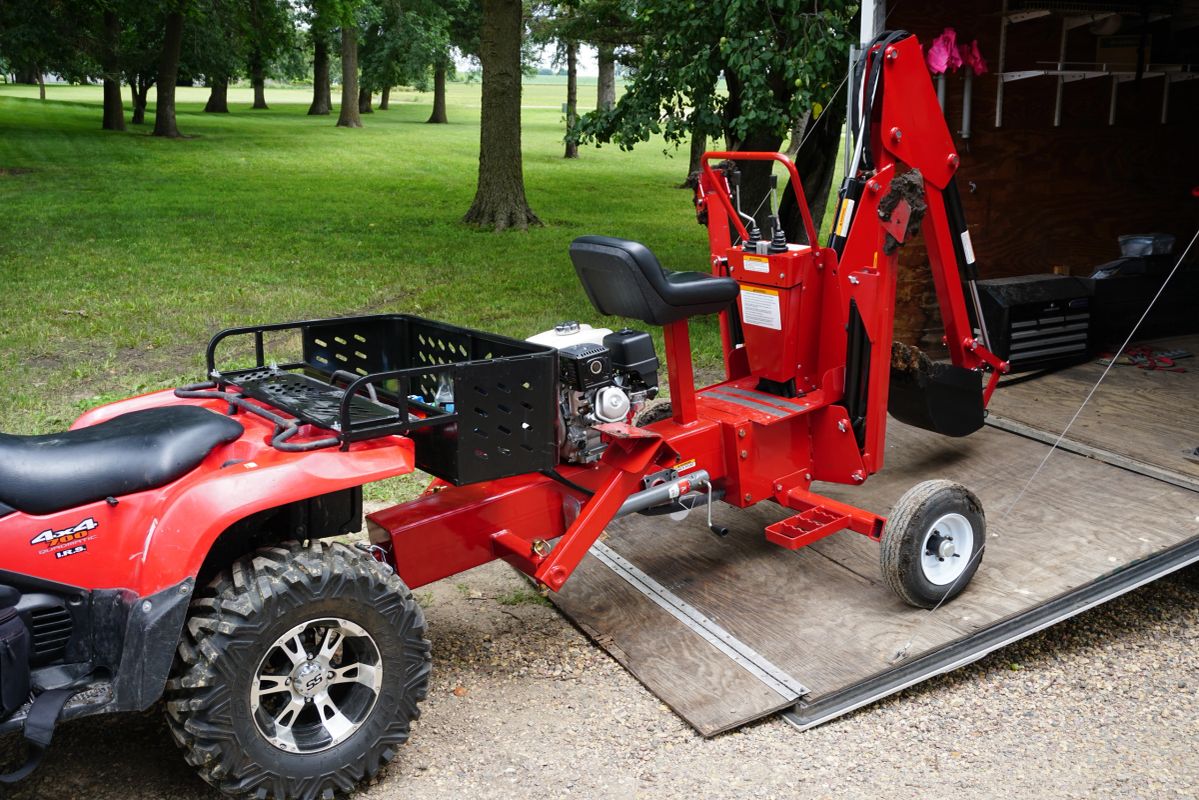

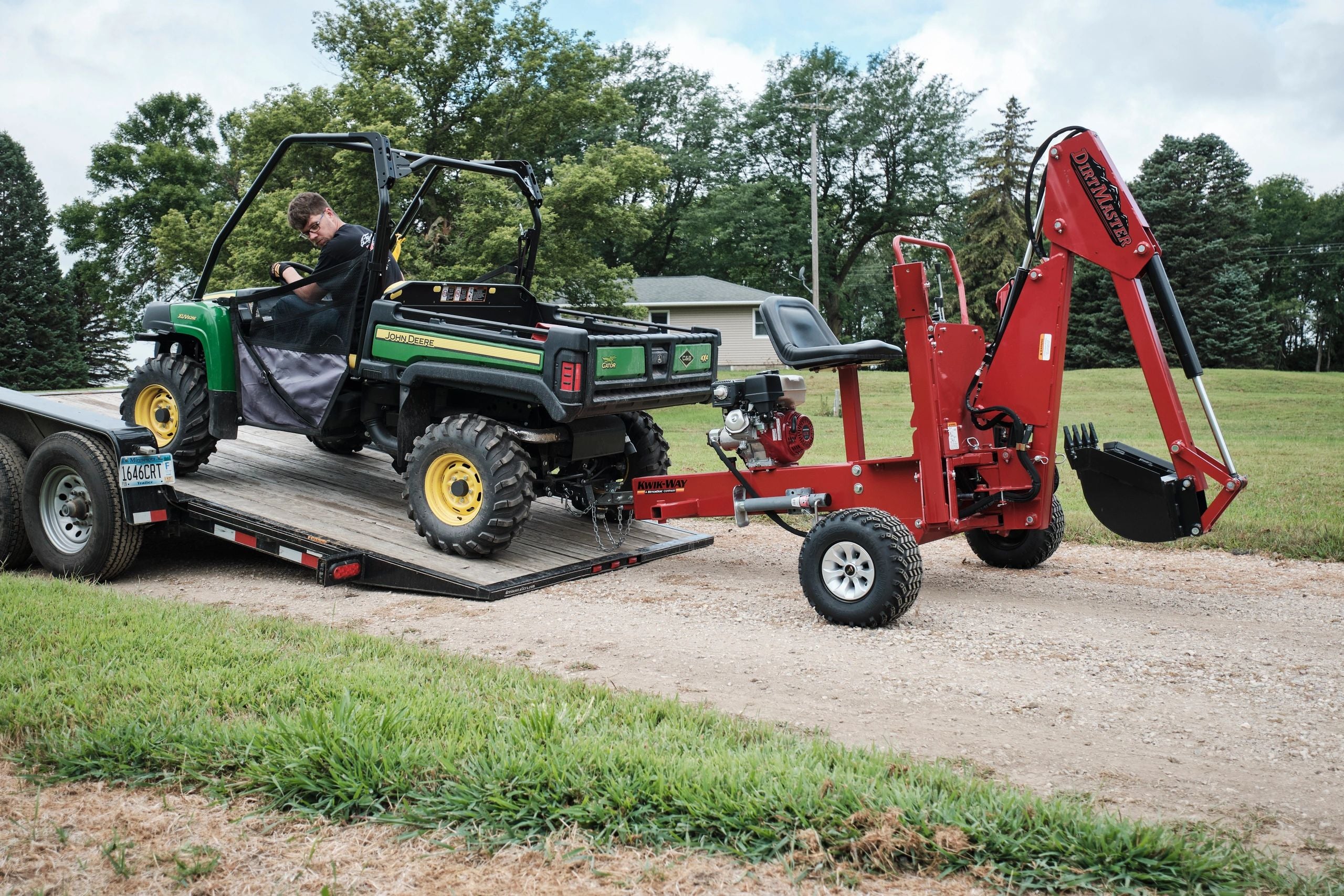

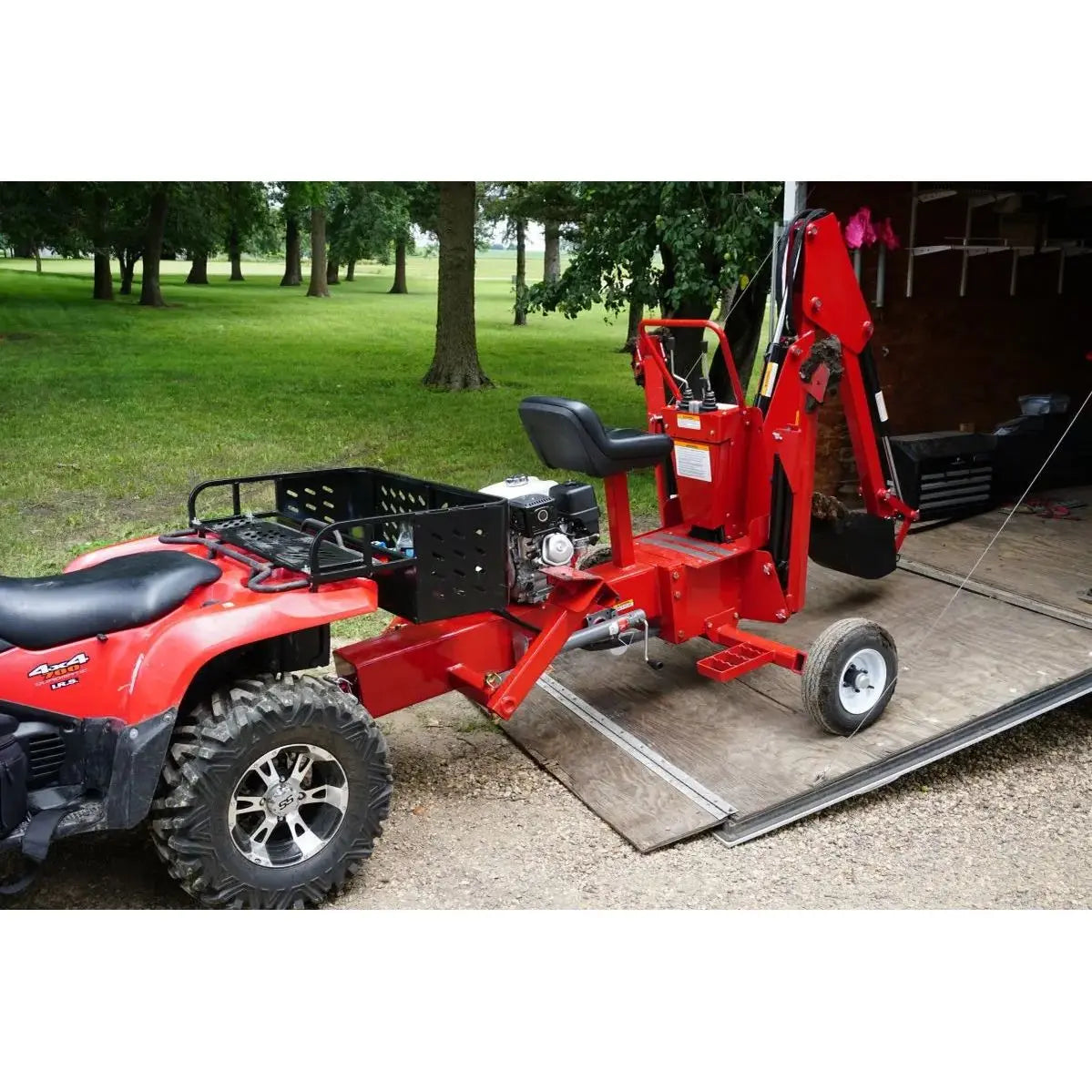

Standard Features: • Limitless Mobility – Tow with the 2” ball behind a variety of vehicles at speeds up to 45 mph • Minimal disturbance – This lightweight machine has smooth tires and stabilizer pads to leave little to no marks on lawns or delicate areas • Solid Stance & Base – With two pairs of stabilizers, one larger hydraulic pair positioned near the front and the other manual pair is towards the rear; make for a solid working platform across any surface • Easy Operation – The two pairs of hydraulic joysticks and a basic direction map allow operators of all skill levels to learn and smoothly dig as soon as they hop in the seat • Best-In-Class Motor – Honda™ engines are one of the most reliable and arguably one of the best on the market for small gas engines • Bucket Variations – The machine comes with a standard 12” bucket and offer additional buckets as well as a ripping tooth as options • Toughest Finish – With a baked-on industrial finish, this paint job will withstand any elements that this towable backhoe can be pulled through
