Grapple Compact Root Rake Grappe (Tractor Loader up to 50-75hp)

PRODUCT FEATURES:

• Ideal attachment for removal of rocks, roots, brush and other

debris

• Loosen and smooth ground while leaving soil behind

• Grapple lid can be used for back-dragging

• Greaseable lid hinges and Cylinder Pins

• 1/4” Serrated AR 450 Lid Tines on 55” and 60”

• 3/8” Serrated AR 450 Lid Tines on 66” and 72”

• 3/4” Serrated AR 450 Rake Tine Thickness on 55” and 60”

• 7/8” Serrated AR 450 Rake Tine Thickness on 66” and 72”

• 2” Cylinder Bore

• Hoses and Couplers included

• 1/2” Ag Couplers are Standard Flat Face Available for $80 more

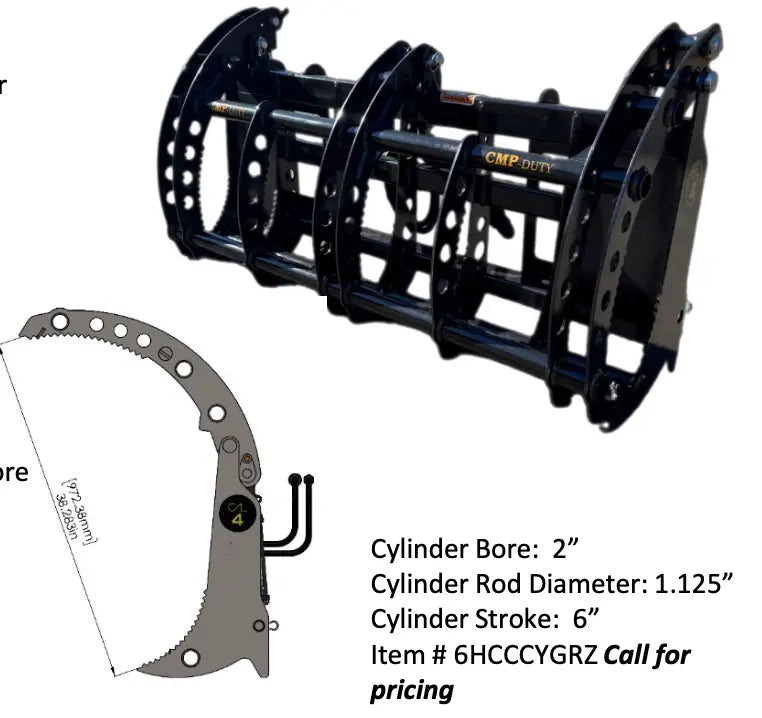

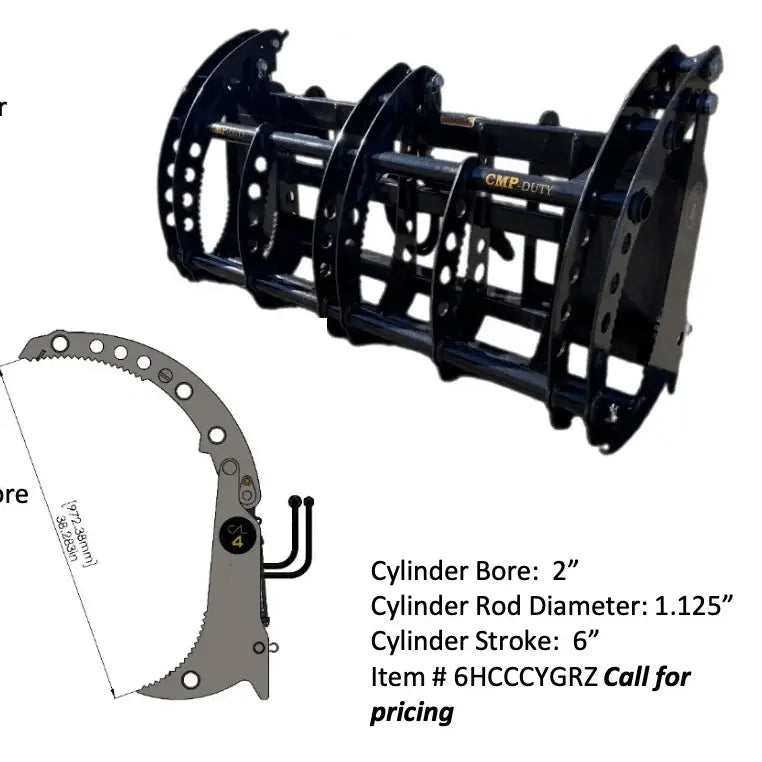

Cylinder Bore: 2”

Cylinder Rod Diameter: 1.125”

Cylinder Stroke: 6”

Item # 6HCCCYGRZ for Replacement Cylinders
