Grapple Severe Xtreme Duty Grapple Bucket (Rubber Tire Machine up to 130hp)
Grapple Severe Xtreme Duty Grapple Bucket (Rubber Tire Machine up to 130hp)

Grapple Severe Xtreme Duty Grapple Bucket (Rubber Tire Machine up to 130hp)

PRODUCT FEATURES: Ideal attachment for harsh environments Used for the removal of building, forestry and scrap yard...
$8,099.80
$8,099.80
Please hurry! Only 100 left in stock
Ask an expert
Subtotal: $8,099.80
Grapple Severe Xtreme Duty Grapple Bucket (Rubber Tire Machine up to 130hp)

Grapple Severe Xtreme Duty Grapple Bucket (Rubber Tire Machine up to 130hp)

$8,099.80
Grapple Severe Xtreme Duty Grapple Bucket (Rubber Tire Machine up to 130hp)
Grapple Severe Xtreme Duty Grapple Bucket (Rubber Tire Machine up to 130hp)

Grapple Severe Xtreme Duty Grapple Bucket (Rubber Tire Machine up to 130hp)

$8,099.80
Select Model: 60" Severe Xtreme Duty Grapple Bucket
Description

PRODUCT FEATURES:
Ideal attachment for harsh environments
Used for the removal of building, forestry and scrap yard debris
Low profile for improved load visibility
19” wide lids are uniform between our Root Grapple and Grapple Bucket line
Large grapple opening of over 44” designed to clamp evenly around load
Maximum grapple clamping force: 6,000 LBS @ 3,000 psi
3/4” x 6” weld-on reversible cutting edge for all models
Accepts a reversible bolt-on edge
Radius moldboard for improved unloading and added strength
¾” lid tines and heavily-gusseted lids
Covered hoses for full protection in harsh environments
Rear hitch designed to match host machine
¾” lid tines and heavily-gusseted lids; neoprene bushings for high repetition
Greaseable pins and 2 ¾” bore cushion cylinders
Rear hitch designed to match host machine

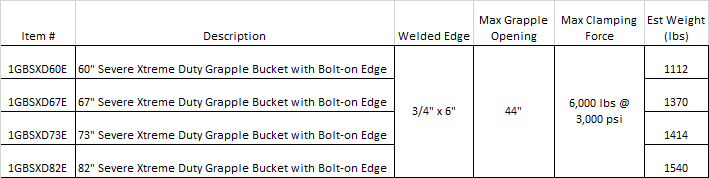

Item # Description Welded Edge Max Grapple Opening Max Clamping Force Est Weight (lbs)

1GBSXD60E

60" Severe Xtreme Duty Grapple Bucket With Bolt-On Edge

 3/4" x 6" 44" 6,000 lbs @ 3,000 PSI 1,112

1GBSXD67E

67" Severe Xtreme Duty Grapple Bucket With Bolt-On Edge

 1,370

1GBSXD73E

73" Severe Xtreme Duty Grapple Bucket With Bolt-On Edge

 1,414

1GBSXD82E

82" Severe Xtreme Duty Grapple Bucket With Bolt-On Edge

 1,540
